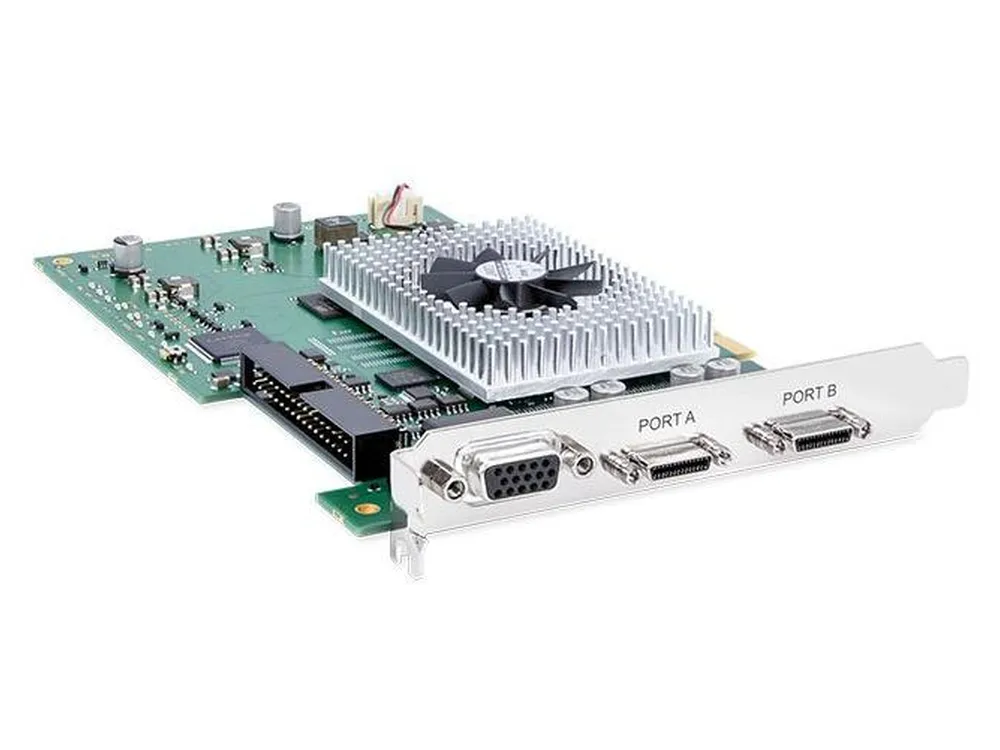

Basler microEnable 5 marathon VCLx

microEnable 5 marathon VCLx是一款PCIe高性能图像处理设备，可连接任意两台Camera Link标准规格的相机。

microEnable 5 marathon VCLx专门用于高速和复杂的图像处理，适用于所有兼容Camera Link的相机，并提供DMA1800技术，能实现功能强大的高级机器视觉应用。

含税价	可应客户需求提供
出货时间	Standard可应客户需求提供

标准	Camera Link 2.0
接口	Camera Link
配置	CL-base CL-deca (80bit) CL-dual base CL-full CL-medium
接头	2 x SDR/HDR26 (miniCL)
芯片类型	CFA sensor (Bayer) Grayscale sensor RGB sensor
位深	8-16-bit (grayscale) 24-48-bit (color)
数据带宽	1 x 6.8 Gbit/s (850 MB/s)
数据带宽（每个端口；总计）	6.8 Gbps; 6.8 Gbps (850 MB/s)
端口数量	2
测试环境	Camera Simulator

PC总线接口	PCIe 2.1 x4, DMA1800
PC总线接口性能	up to 1800 MB/s (sustainable)

常规信息

板载GPIO接口	4 opto-coupled outputs (4,5V - 28V) One 34-pin flat cable connector onboard: 4 opto-coupled inputs (4,5V - 28V), optional 2 opto-coupled differential inputs (RS422) Shaft encoder input, programmable rescaler, multiple-camera synchronization
板载前端GPIO接口	2 TTL outputs, up to 20 MHz frequency One 15-pin D-Sub socket: 2 opto-coupled differential inputs (RS422) and 1 opto-coupled differential / single ended input optional (conf.): 4 opto-coupled Inputs (4,5V - 28V) with up to 1 MHz frequency
GPIO同步和控制	Configurable Trigger System supporting several trigger modes (grabber controlled, external trigger, gated, software trigger) and shaft encoder functionality with backward compensation, Multi-Camera-Synchronization
GPIO接口概述	4 in/2 out (max.), TTL or opto-coupled; differential or single-ended signals (configuration dependent) 8 in/8 out (max.), TTL or opto-coupled; differential or single-ended signals (configuration dependent)

尺寸	PCIe Standard height, half length card: 167.64 mm length x 111.15 mm height
重量	165 g
功耗/电源	12 V, 1.4 A (actual values depend on processing)
操作温度	50° (0 LFM), 60° (100 LFM) FPGA operating temperature: 0°C to 85°C, * LFM = Linear Feet per Minute, unit for measuring airflow velocity
存储温度	-50 - 80 °C
相对湿度（操作、存储）	5 - 90 % non-condensing (operating), 0 - 95 % (storage)
MTBF	pending

软件驱动程序	Windows 11 / 10 (64-Bit) Windows 11 / 10 (32-Bit) Linux 64-Bit
软件工具	Device Drivers Documentation microDisplay (Acquisition control and viewer) SDK
软件API	.net interface
FPGA编程	VisualApplets
MV-软件兼容性	Cognex Halcon others on request
