pylon
快速简便的图像采集
相机设置简单
强大的图像采集工具认证驱动程序
为Windows、Linux、macOS和Android提供可靠性能Basler相机功能
直接访问相机功能,获得出色图像,不额外产生处理器负载实时性能
在延迟和抖动方面表现出色,提供稳定的实时图像采集上手简单
得益于易于学习的pylon API和可侦测情景的开发人员文档,可即刻提高生产力节省时间
研究表明,与使用其他API相比,开发人员在任务上花费的时间只占20%或以下精益型代码

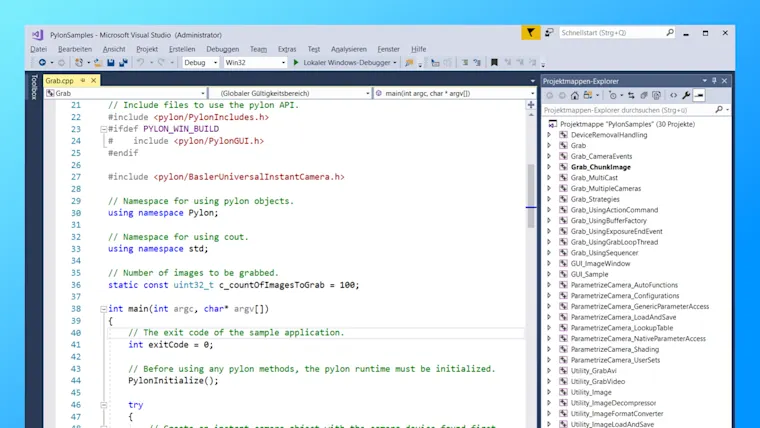

使用pylon API开发应用程序时,只需使用大约40%的编程代码量,就能实现相同的功能错误来源更少
减少编程范围,应用开发简单,因此可快速排除故障
pylon软件套装的要素
pylon由多个部分组成:用于评估和设置相机的pylon Viewer,用于整合到应用软件的SDK,以及用于可靠连接的驱动程序。
此外,pylon vTools还提供图像处理功能,并且可轻松集成到您的应用中。

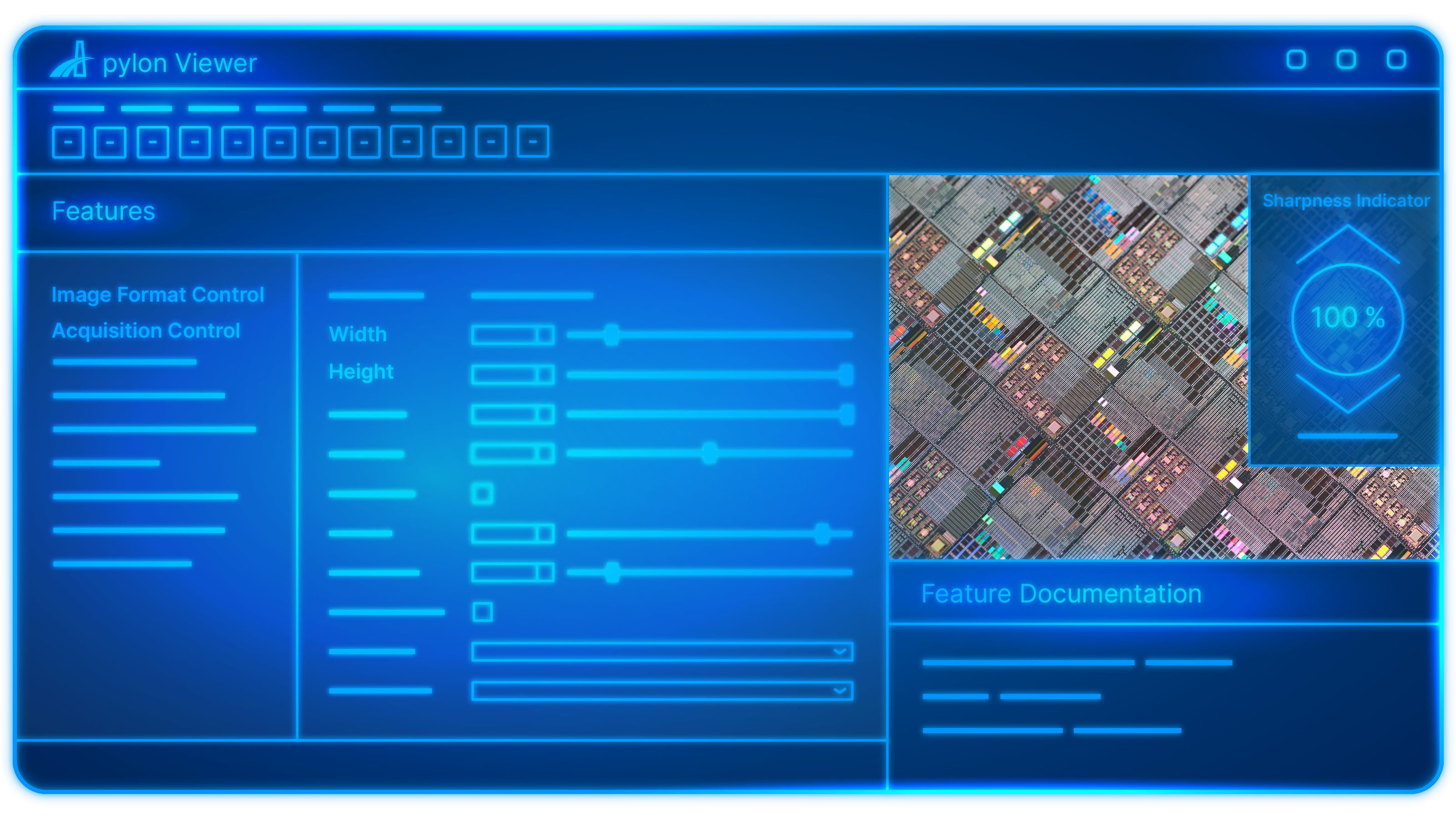

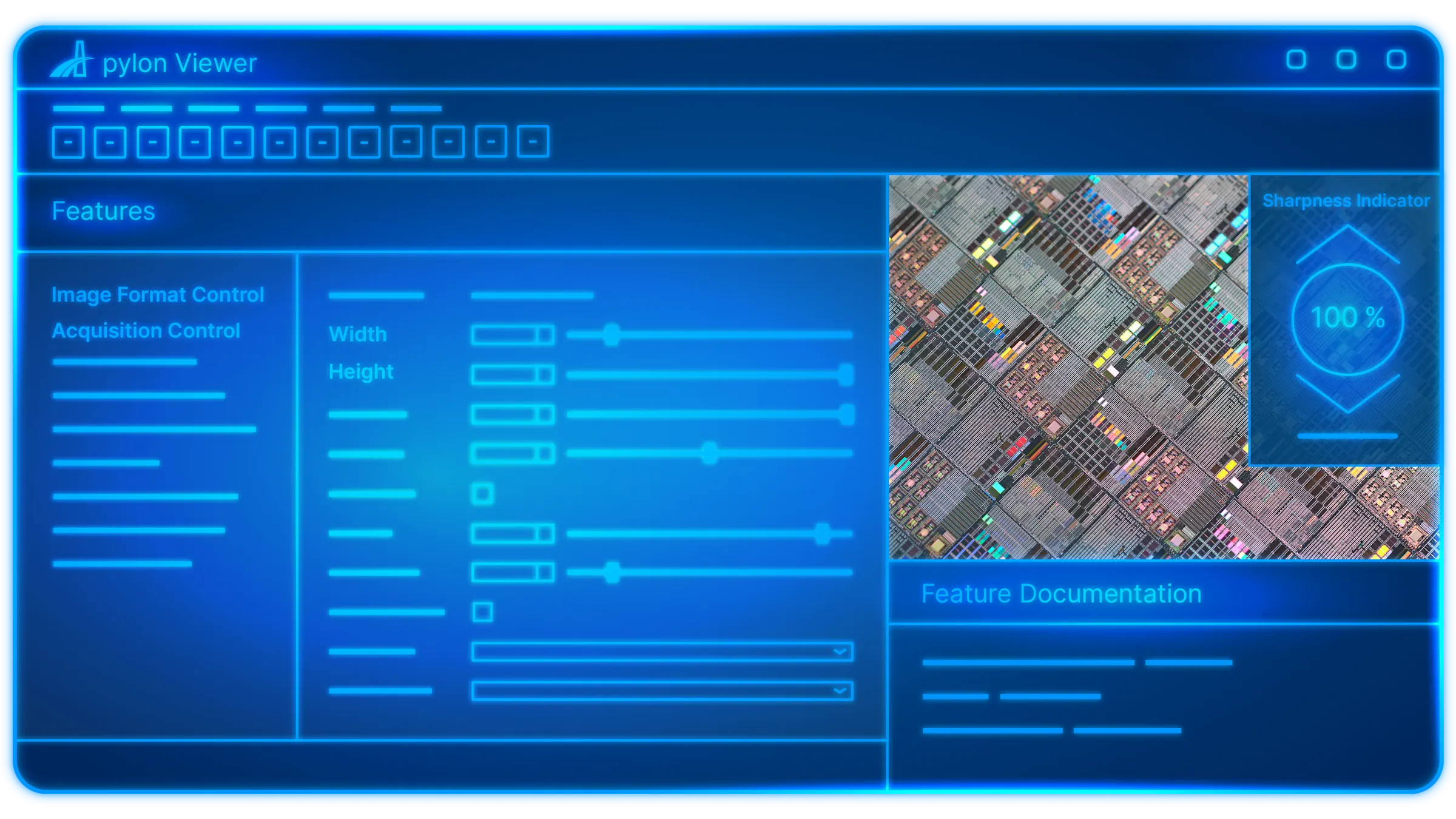

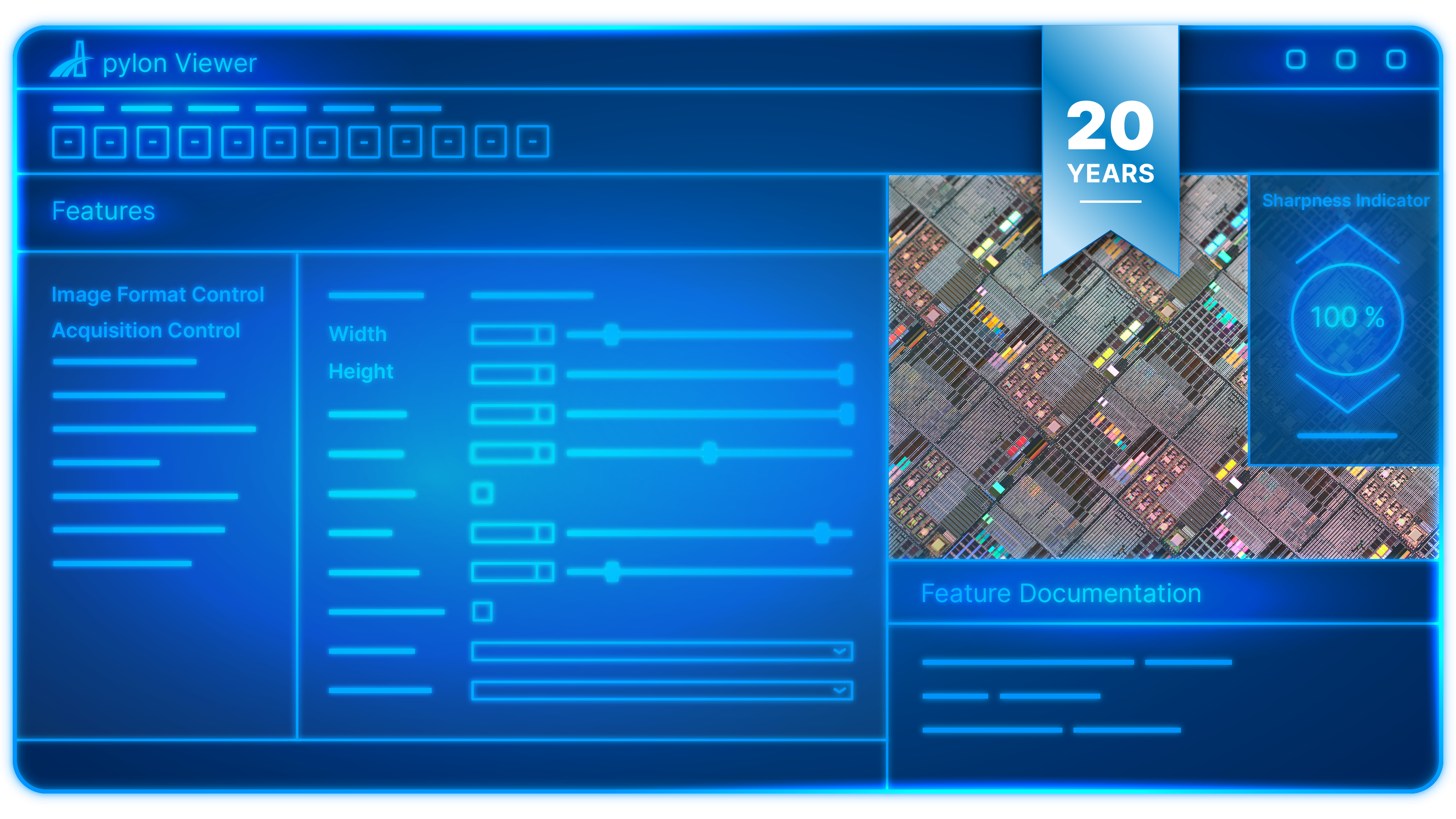

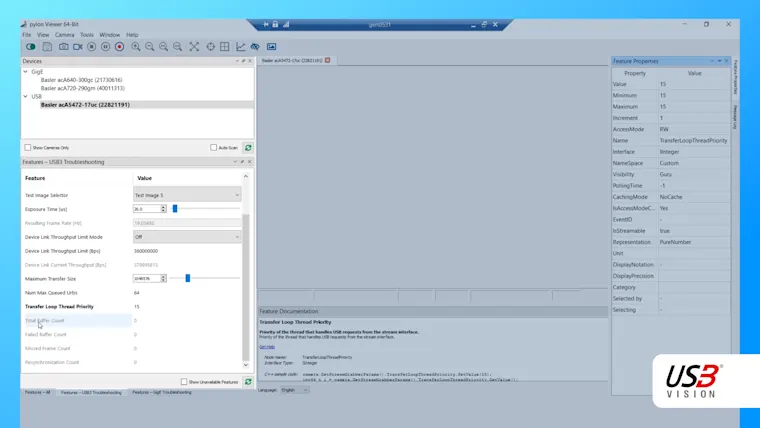

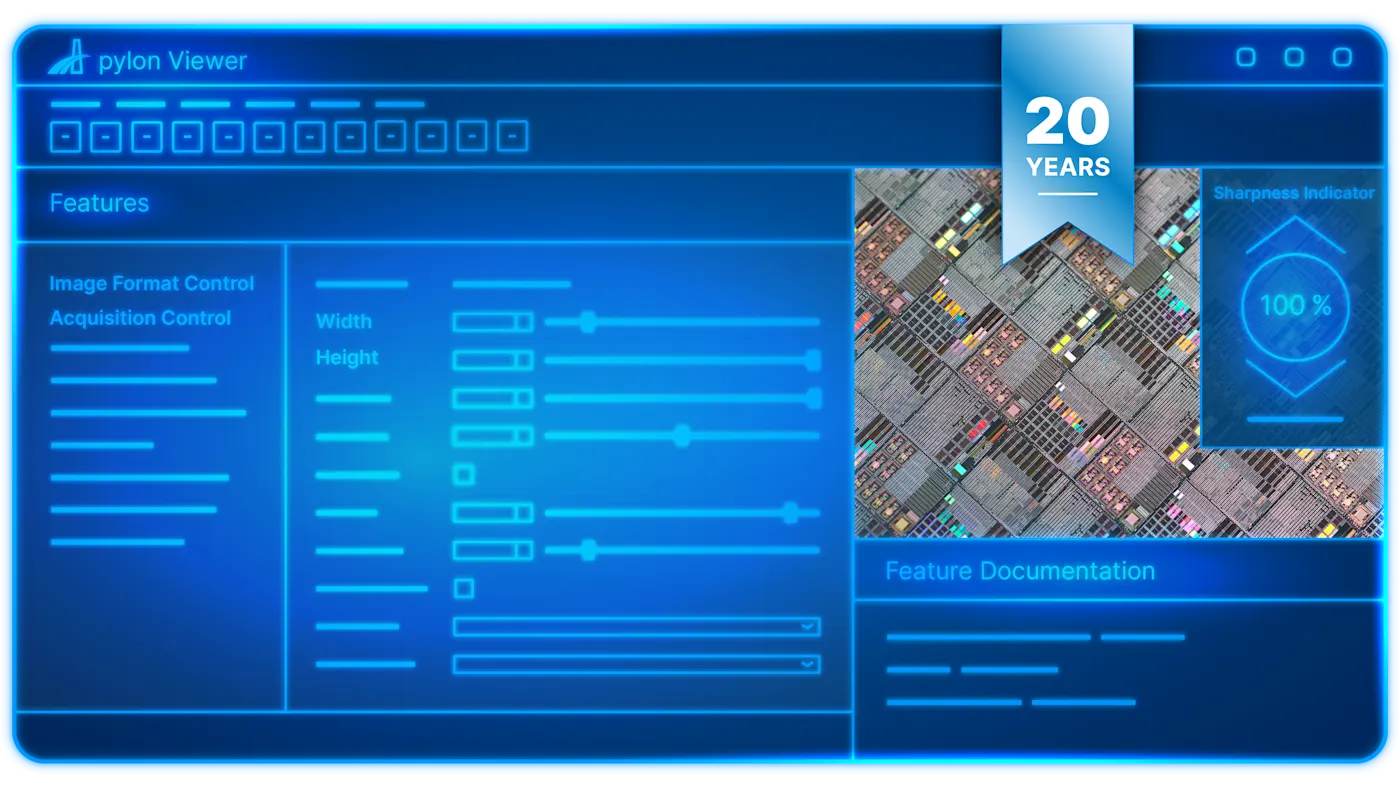

pylon Viewer
pylon Viewer是设置和评估Basler相机的核心工具。它提供了丰富的配置功能。集成的相机文档解释了如何在您的应用开发中使用Basler相机的功能。此外,Viewer提供了多个配置网络和USB连接的工具。
查看pylon Viewer![pylon SDK](http://images-ctf.baslerweb.com/dg51pdwahxgw/17p3cxZsLYhIm2nbZGlVdY/258790277b139205b937af277fac3a28/pylon-software-sdk-2.webp?fm=webp&f=left&w=800&h=450&q=80&fit=pad)

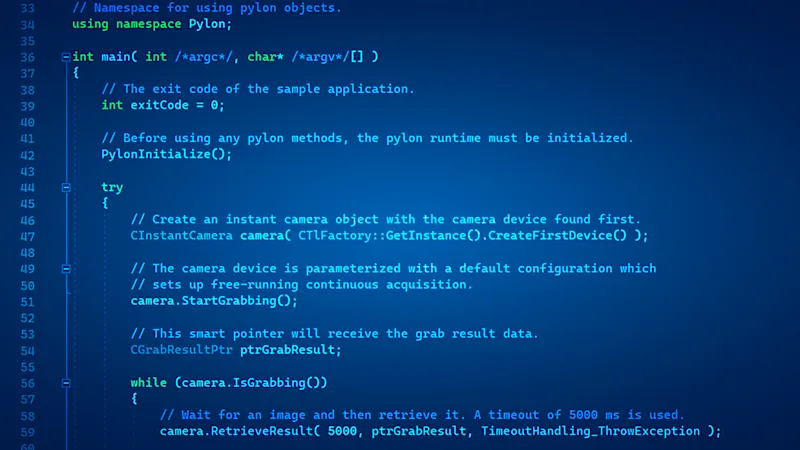

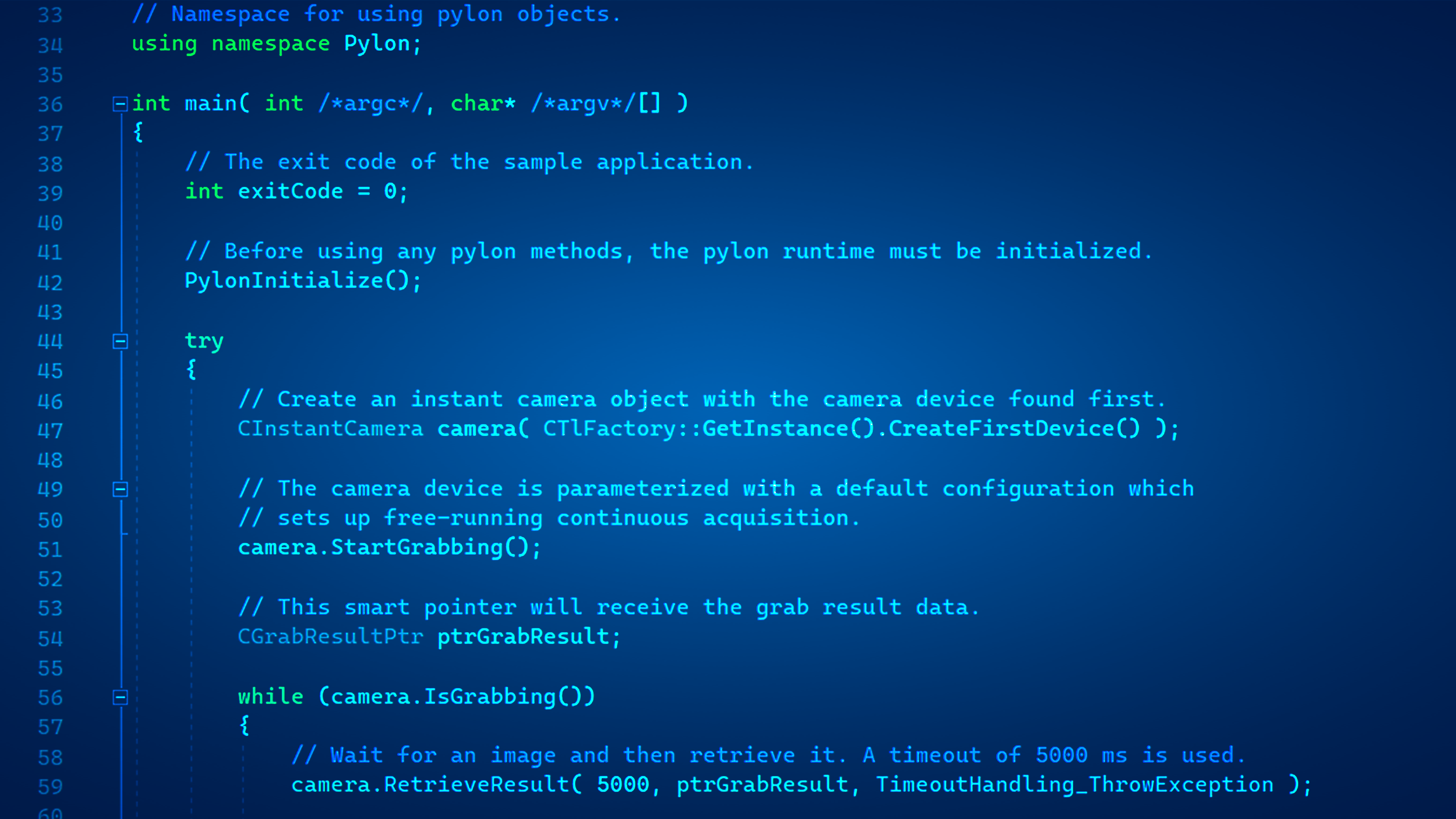

pylon SDK
pylon SDK可提供易于学习的编程界面,使您能够提高应用程序的生产力和稳定性。每个SDK都包括所有类型功能的大量代码示例,以及全面的开发人员文档。pylon SDK可用于各种编程语言,例如C++、.Net/C#和C。

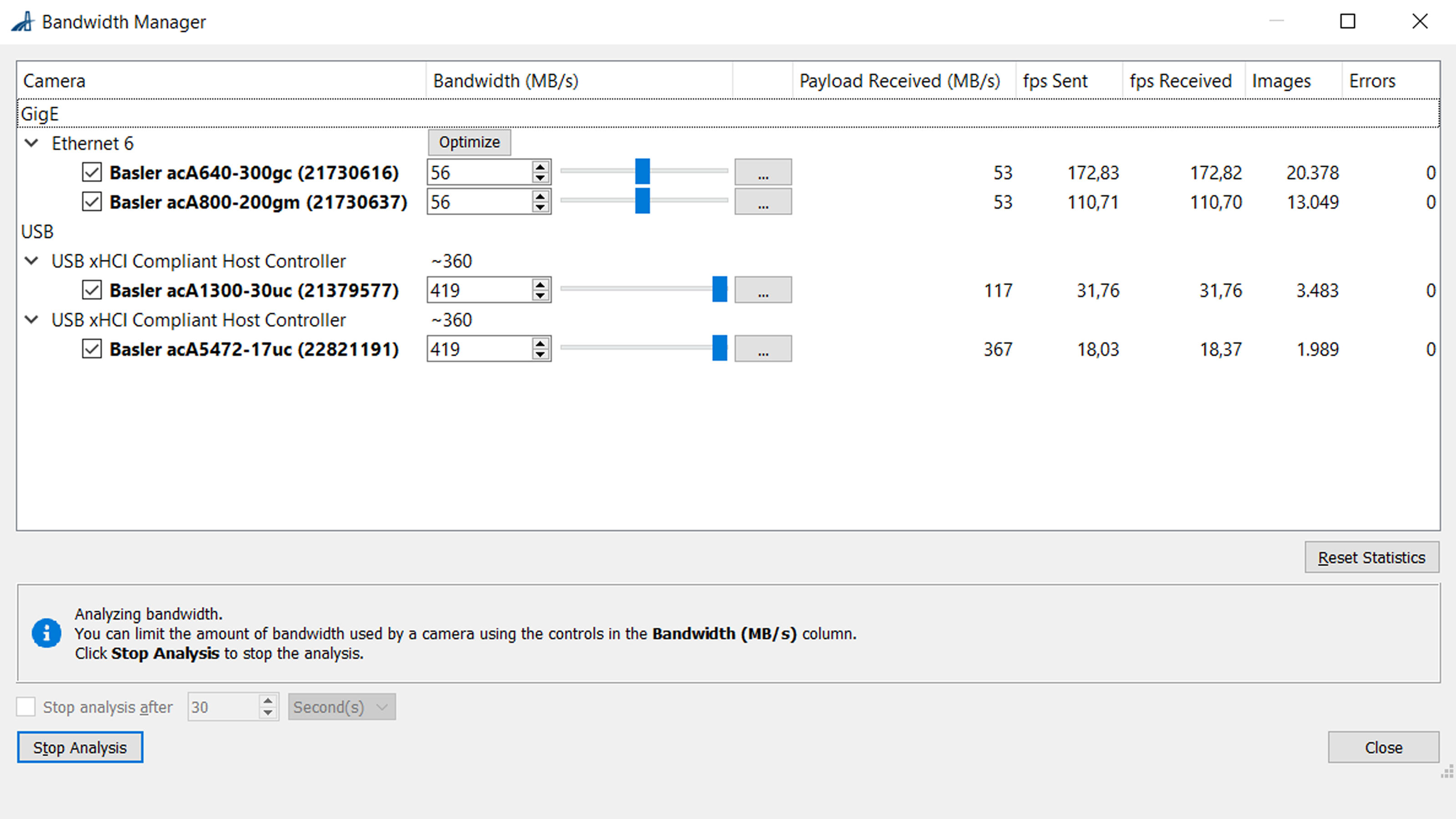

![pylon 带宽管理器](http://images-ctf.baslerweb.com/dg51pdwahxgw/z4uOnSmB1v9MbmT4tm1ql/bfc04ba94fb4d285b4c176c33e2da786/pylon-software-bandwidth-manager.webp?fm=webp&f=left&w=800&h=450&q=80&fit=pad)
驱动程序
Basler为您的相机提供了一系列经过优化的驱动程序,适用于各种接口。无论您如何选择,这些驱动程序都能保证您的Basler相机以实时、高质、快速、可靠的方式运行。
![pylon开源项目](http://images-ctf.baslerweb.com/dg51pdwahxgw/7jDkyHRxGkEM3Ov8pNnsZR/1b31cd0031c178a0f375b7a9cbcc9501/pypylon_logo_teaser.webp?fm=webp&f=center&w=800&h=450&q=80&fit=pad)
开源
您可以凭借开源项目pypylon和适用于ROS 1和ROS 2的pylon相机驱动程序,通过Python编程语言来开发原型应用,并在机器人操作系统(ROS)上开发机器人应用。
GStreamer Plug-In是一款适用于GStreamer多媒体框架的开源插件,可用于流媒体和视频编辑/播放等媒体应用。
pylon OS versions and their features
pylon for Windows | pylon for Linux x86 | pylon for Linux ARM | pylon for macOS | pylon for Android | |
---|---|---|---|---|---|
平台 | |||||
最新的pylon版本 | pylon 7.5.0 | pylon 7.5.0 | pylon 7.5.0 | pylon 7.3.1 | pylon 6.1.0 |
支持的操作系统版本 | 10 (64 bit), 11 (64 bit) | Ubuntu 20.04或更高版本(64位)、CentOS 9或更高版本(64位) | Ubuntu 20.04或更高版本(64位) | 11, 12, 13,14 (Intel/ARM 64 位) | 8, 9, 10, 11 |
配置工具 | |||||
pylon Workbench & vTools | ● | ● | ● | ||
pylon Viewer | ● | ● | ● | ● (pylon 6.2) | |
pylon GigE Configurator | ● | ● | ● | ||
pylon IP Configurator | ● | ● | ● | ● (pylon 6.2) | |
pylon USB Configurator | ● | ||||
pylon Camera Link Configurator | ● | ||||
Camera API Generator | ● | ● | ● | ||
Firmware Updater | ● | ● | ● | ||
CXP Grabber Firmware Updater | ● | ● | |||
CXP gpioTool | ● | ● | |||
Color Calibrator | ● | ● | ● | ● (pylon 6.2) | |
MPEG 4 Video Recording | ● | ● | ● | ||
blaze 3D Viewer | ● | ● | ● | ||
应用开发 | |||||
Data Processing C++ API | ● | ● | ● | ||
C++ API | ● | ● | ● | ● | ● |
VB.Net / C# API | ● | ||||
C API | ● | ● | ● | ||
Java API | ● | ||||
GenTL | |||||
USB3 Vision | ● | ● | ● | ● | |
GigE Vision | ● | ● | ● | ● | |
CoaXPress 2.0 | ● | ● | |||
BCON for MIPI | ● | ||||
blaze 3D | ● | ● | ● | ||
接口驱动程序 | |||||
Direct Show Driver (U3V, GEV) | ● | ||||
TWAIN Driver (U3V, GEV) | ● | ||||
NeuroCheck Driver (U3V, GEV) | ● | ||||
CoaXPress 2.0 Driver | ● | ● | |||
GigE Vision Driver | ● | ● | ● | ● | |
USB3 Vision Driver | ● | ● | ● | ● | ● |
Camera Link Driver | ● | ||||
BCON for MIPI Driver | ● |

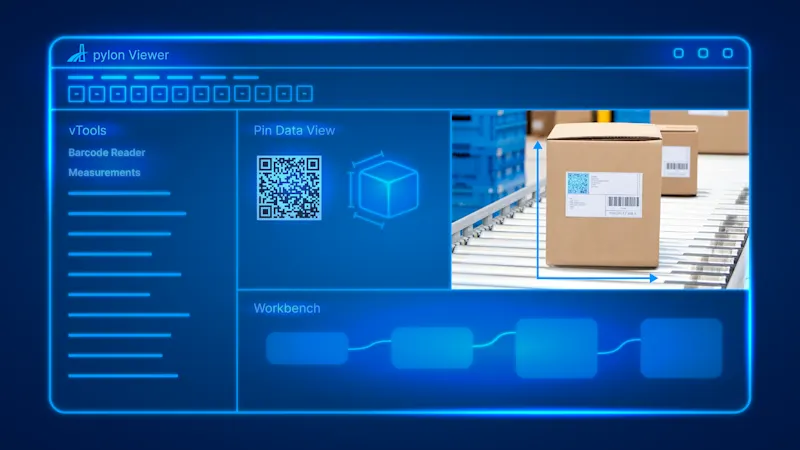

图像处理:使用pylon vTools快速而简单
![Basler pylon vTools](http://images-ctf.baslerweb.com/dg51pdwahxgw/2xNfgjzl00tSnhPNMBuN7A/89e609046510795c92bebe967d92dce0/pylon-vtools-01-3200x2400.webp?fm=webp&f=bottom&w=800&h=450&q=80&fit=pad)
设计高性能的图像处理功能,并灵活地将所有内容都整合到您的应用中,还包括与Basler相机完美匹配的相机控制以及图像采集功能。即刻下载pylon,并免费试用80天。
查看pylon vToolsAI image analysis: efficient and intuitive with pylon AI
![pylon AI for image analysis with artificial intelligence](http://images-ctf.baslerweb.com/dg51pdwahxgw/qC9GWIPzPyCkYD1DZQCCg/1a0b5a44662626f84a8a7a63f1e2aa69/software-pylon-ai.webp?fm=webp&f=center&w=800&h=450&q=80&fit=pad)
pylon AI enables complex image analyses and new use cases including object detection and segmentation. Trainable with individual data sets, flexible thanks to freely selectable AI models, and optimizable for your processing hardware.
详细了解pylon
详细了解我们的产品和应用。我们内容详实的综合材料能为您提供各种重要细节。
