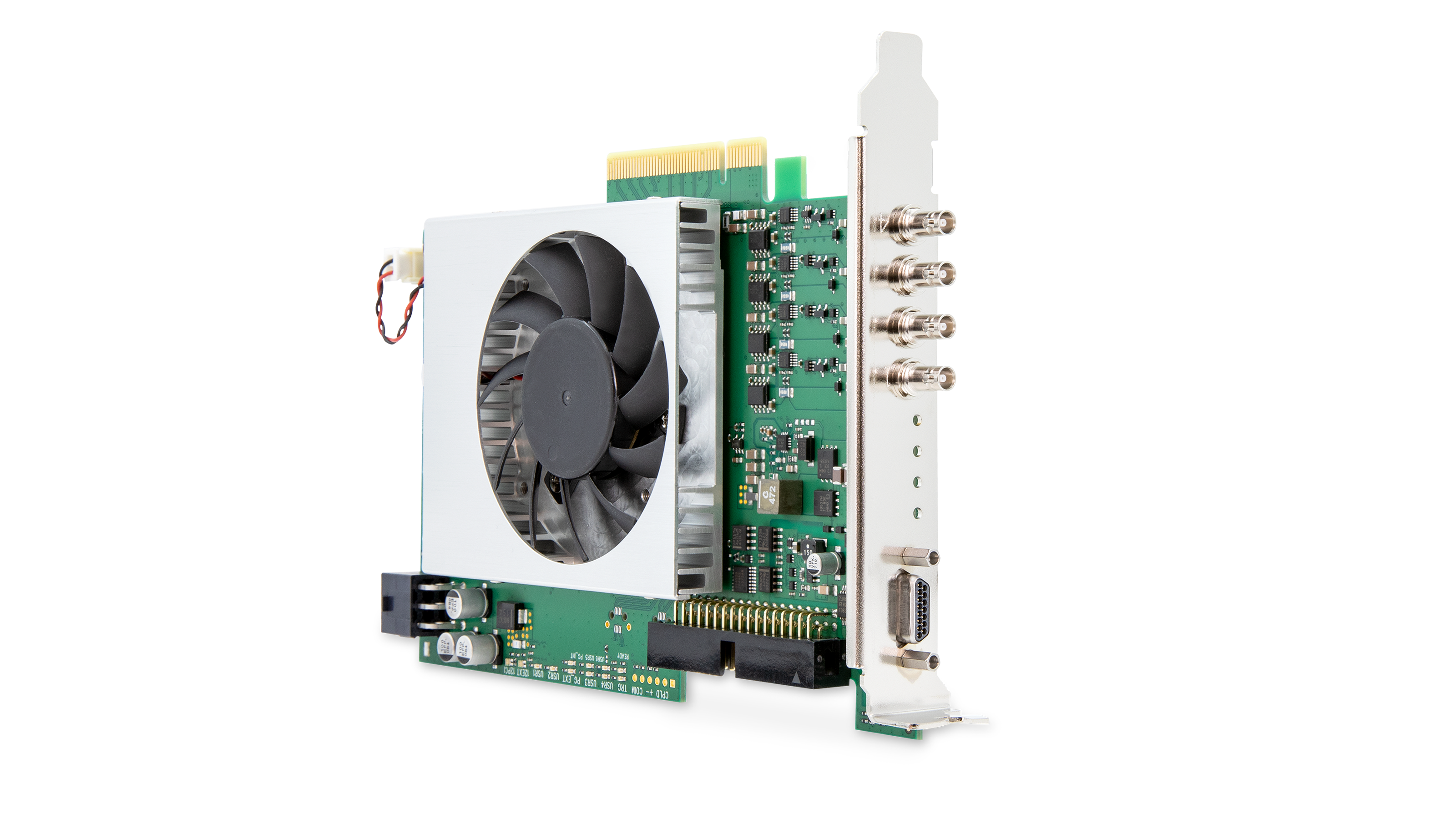

imaWorx CXP-12 Quad

Name: imaWorx CXP-12 Quad
Brand: Basler
SKU: 2200000482
Availability: PreOrder

imaWorx CXP-12 Quad是一款CoaXPress 2.0图像采集卡，可让最多四台CXP-12相机实现全带宽连接。

imaWorx CXP-12 Quad专注于高速图像采集功能，可利用最新的PCIe技术实现高要求的机器视觉应用。

Basler 产品提供 3 年保修全球范围内的个人专家支持安全、加密的数据传输

处理器	Xilinx Ultrascale+ KU3P
板载内存	1.5 GByte DDR4-RAM
I/O模块接口（信号触发和同步）	Front GPIO: up to 3 differential signals in, up to 4 single-ended signals in (depends on configuration), 2 TTL outputs Trigger-/GPIO-Extension (for Opto Trigger or TTL Trigger)
通过接口供电（每个端口）	PoCXP (17W/24V per connector)
Acquisition Card Features	Flat Field Correction Digital Binning PGI Color Reconstruction

标准	CoaXPress 2.0/2.1
接口	CoaXPress (CXP-12)
配置	CXP-12; up to 4 cameras
接头	4 x Micro-BNC/HD-BNC
线材长度	11 - 40 meters
功率输出	17W/24VDC regulated power per CXP connector, device detection and short circuit protection
相机支持	area scan camera line scan camera
芯片类型	CFA sensor (Bayer) Grayscale sensor RGB sensor
芯片分辨率	32k*64k (area scan sensor), 16k (line scan sensor)
位深	8-16-bit (grayscale) 24-48-bit (color)
数据带宽	4 x 12.5 Gbit/s (1,560 MB/s)
数据带宽（每个端口；总计）	12.5 Gbps; 50 Gbps
端口数量	4
测试环境	Camera Simulator

PC总线接口	PCIe 3.0 x8
PC总线接口性能	7876 MB/s (theoretical), 6520 MB/s (typical/max.)

触发板GPIO接口	Box connector (34-pin)
板载GPIO接口	One 34-pin flat cable connector onboard: 8 input signals and 8 output signals with open-drain optionally as 4 opto-coupled inputs (4,5V - 28V), optional 2 opto-coupled differential inputs (RS422); 4 opto-coupled outputs (4,5V - 28V)
板载前端GPIO接口	3 differential input signals or 2 differential and 1 single-ended signal or 4 single-ended signals; 2 TTL output signals; configurable by software GPIOTool; max. voltage of the input signals between 4,5V and 25V
GPIO同步和控制	Configurable Trigger System supporting several trigger modes (grabber controlled, external trigger, gated, software trigger) and shaft encoder functionality with backward compensation, Multi-Camera-Synchronization
GPIO接口概述	12 in/10 out (max.), TTL or opto-coupled; differential or single-ended signals (configuration dependent)

尺寸	PCIe Standard height, half length card: 167.64 mm length x 111.15 mm height
重量	274 g
功耗/电源	Typ. 13,4W@12V, excluding camera and I/O power output
操作温度	0 - 50 °C
存储温度	-50 - 80 °C
相对湿度（操作、存储）	5 - 90 % non-condensing (operating), 0 - 95 % (storage)
MTBF	48.440 h

软件驱动程序	Linux 64-Bit Windows 11 / 10 (64-Bit)
软件工具	Device Drivers Documentation microDiagnostics (Analysis and service tool) microDisplay X (Acquisition control and viewer) pylon Software Suite SDK
软件API	.net interface Framegrabber SDK GenTL pylon SDKs
MV-软件兼容性	GenTL-based MV-Software Halcon VisionPro
