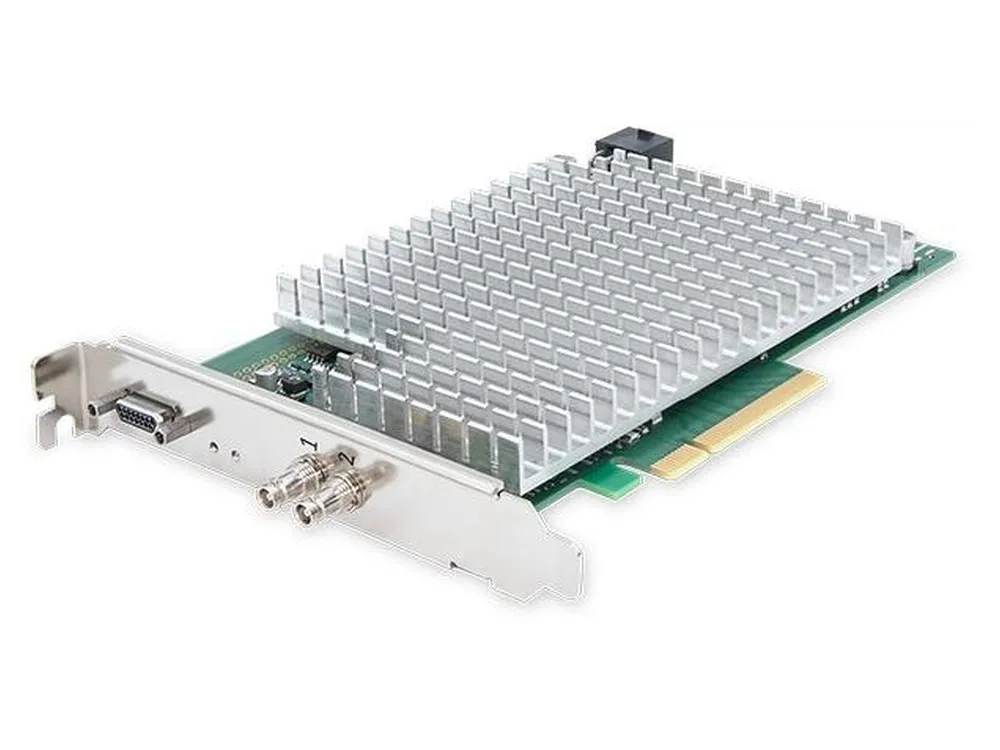

CXP-12 Interface Card 2C
- 接口: CoaXPress (CXP-12)
- 端口数量: 2
- 产品类型: Acquisition
- 数据带宽（每个端口；总计）: 12.5 Gbps; 25 Gbps
Basler CXP-12接口卡2C能提供双通道Micro-BNC (HD BNC)连接，最高带宽可达12.5 Gbps。
常规信息
| 项目编号 | 2200000701 |
|---|---|
| 制造商 | Basler |
| 配件类型 | PC Card (CXP-12) |
| 产品系列 | CXP-12 Interface Cards |
| 产品类型 | Acquisition |
| 保修期 | 36个月 |
Device Features
| 处理器 | Xilinx Ultrascale+ KU3P |
|---|---|
| 板载内存 | 1 GByte DDR4-RAM |
| I/O模块接口（信号触发和同步） | Front GPIO: up to 3 differential signals in, up to 4 single-ended signals in (depends on configuration), 2 TTL outputs |
| 通过接口供电（每个端口） | PoCXP (17W/24V per connector) |
| Acquisition Card Features |
|
Camera Interface
| 标准 | CoaXPress 2.0/2.1 |
|---|---|
| 接口 | CoaXPress (CXP-12) |
| 配置 | CXP-12; up to 2 cameras |
| 接头 | 2 x Micro-BNC/HD-BNC |
| 线材长度 | 11 - 40 meters |
| 功率输出 | 17W/24VDC regulated power per CXP connector, device detection and short circuit protection |
| 相机支持 |
|
| 芯片类型 |
|
| 芯片分辨率 | 32k*64k (area scan sensor), 16k (line scan sensor) |
| 位深 |
|
| 数据带宽 | 2 x 12.5 Gbit/s (1,560 MB/s) |
| 数据带宽（每个端口；总计） | 12.5 Gbps; 25 Gbps |
| 端口数量 | 2 |
Host PC Interface
| PC总线接口 | PCIe 3.0 x8 |
|---|---|
| PC总线接口性能 | 7876 MB/s (theoretical), 6520 MB/s (typical/max.) |
Controls and General-Purpose I/Os
| 板载前端GPIO接口 | 3 differential input signals or 2 differential and 1 single-ended signal or 4 single-ended signals; 2 TTL output signals; configurable by software GPIOTool; max. voltage of the input signals between 4,5V and 25V |
|---|---|
| GPIO接口概述 | 4 in/2 out (max.), TTL or opto-coupled; differential or single-ended signals (configuration dependent) |
Processing Features
| 基本功能 |
|
|---|
Physical and Environmental Information
| 尺寸 | PCIe Standard height, half length card: 167.64 mm length x 111.15 mm height |
|---|---|
| 重量 | 266 g |
| 功耗/电源 | Typ. 13,4W@12V, excluding camera and I/O power output |
| 操作温度 | 0 - 50 °C |
| 存储温度 | -50 - 80 °C |
| 相对湿度（操作、存储） | 5 - 90 % non-condensing (operating), 0 - 95 % (storage) |
| MTBF | 2.137.243 h |
Software
| 软件驱动程序 |
|
|---|---|
| 软件工具 |
|
| 软件API |
|
| MV-软件兼容性 |
|
制造商
| Basler |
|---|
符合标准
- CE (incl. RoHS)
- FCC
- ISO 9001:2015
- KC
- REACH
- UKCA
- WEEE
