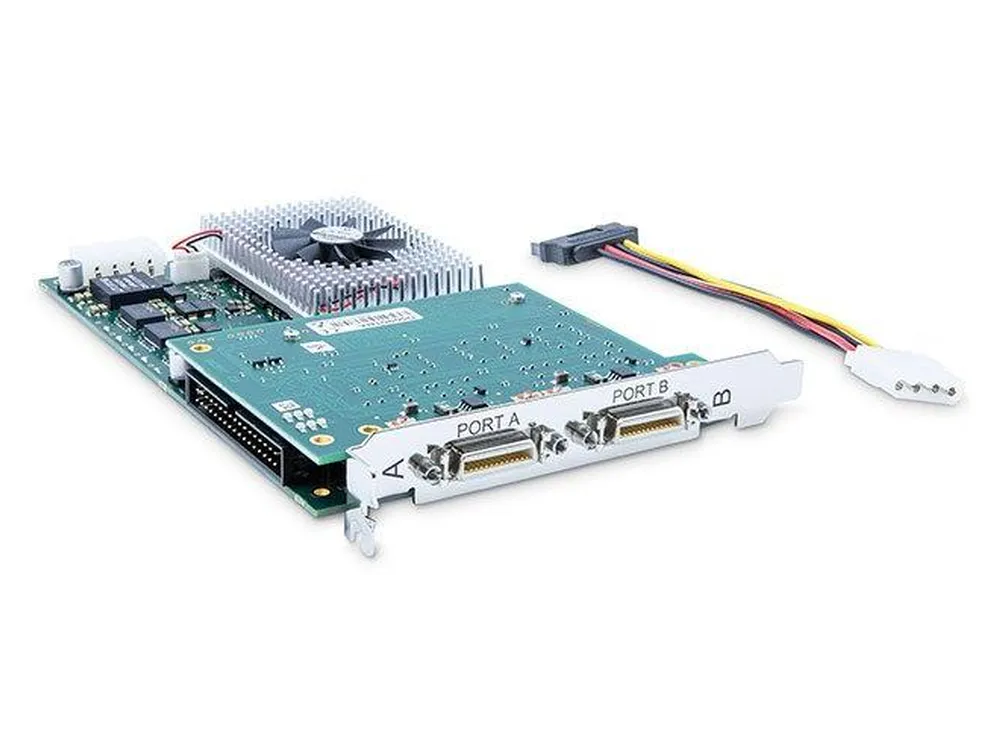

常规信息
| 项目编号 | 108095 |
|---|---|
| 配件类型 | Frame grabber |
| 产品系列 | ironman Frame Grabber |
| 产品类型 | Acquisition |
| 最后购买时间 | 2025/6/30 |
| 最后服务时间 | 2027/7/31 |
Device Features
| 处理器 | Xilinx Virtex6 XC6VLX195T FPGA |
|---|---|
| 板载内存 | 1 GByte DDR3-RAM |
| I/O模块接口（信号触发和同步） | Trigger/GPIO-IF (Opto Trigger, TTL Trigger) |
| 通过接口供电（每个端口） | PoCL (4W/12V per cable, Safe Power) |
Camera Interface
| 标准 | Camera Link 2.0 |
|---|---|
| 接口 | Camera Link |
| 配置 |
|
| 接头 | 2 x MDR26 |
| 线材长度 | 0 - 10 meters |
| 功率输出 | PoCL SafePower, 4W/12V per cable |
| 相机支持 |
|
| 芯片类型 |
|
| 芯片分辨率 | 16k*64k (area scan sensor), 16k (line scan sensor) |
| 位深 |
|
| 数据带宽 | 1 x 6.8 Gbit/s (850 MB/s) |
| 数据带宽（每个端口；总计） | 6.8 Gbps; 6.8 Gbps (850 MB/s) |
| 端口数量 | 2 |
| 测试环境 | Camera Simulator |
Host PC Interface
| PC总线接口 | PCIe 2.1 x8, DMA3600 |
|---|---|
| PC总线接口性能 | up to 3600 MB/s (sustainable) |
Controls and General-Purpose I/Os
| 触发板GPIO接口 | Box connector (34-pin) |
|---|---|
| 板载GPIO接口 | One 34-pin flat cable connector onboard: 8 input signals and 8 output signals with open-drain optionally as 4 opto-coupled inputs (4,5V - 28V), optional 2 opto-coupled differential inputs (RS422); 4 opto-coupled outputs (4,5V - 28V) |
| GPIO同步和控制 | Configurable Trigger System supporting several trigger modes (grabber controlled, external trigger, gated, software trigger) and shaft encoder functionality with backward compensation, Multi-Camera-Synchronization |
| GPIO接口概述 | 8 in/8 out (max.), TTL or opto-coupled; differential or single-ended signals (configuration dependent) |
Processing Features
| 基本功能 |
|
|---|
Physical and Environmental Information
| 尺寸 | PCIe Standard height, half length card: 167.64 mm length x 111.15 mm height |
|---|---|
| 重量 | 240 g |
| 功耗/电源 | 14 V, 2.5 A |
| 操作温度 | 0 - 50 °C |
| 存储温度 | -50 - 80 °C |
| 相对湿度（操作、存储） | 5 - 90 %, relative, non-condensing |
| MTBF | on request |
| 合规 |
|
Software
| 软件驱动程序 |
|
|---|---|
| 软件工具 |
|
| 软件API |
|
| FPGA编程 | not programmable |
| MV-软件兼容性 |
|
制造商
| Basler |
|---|
