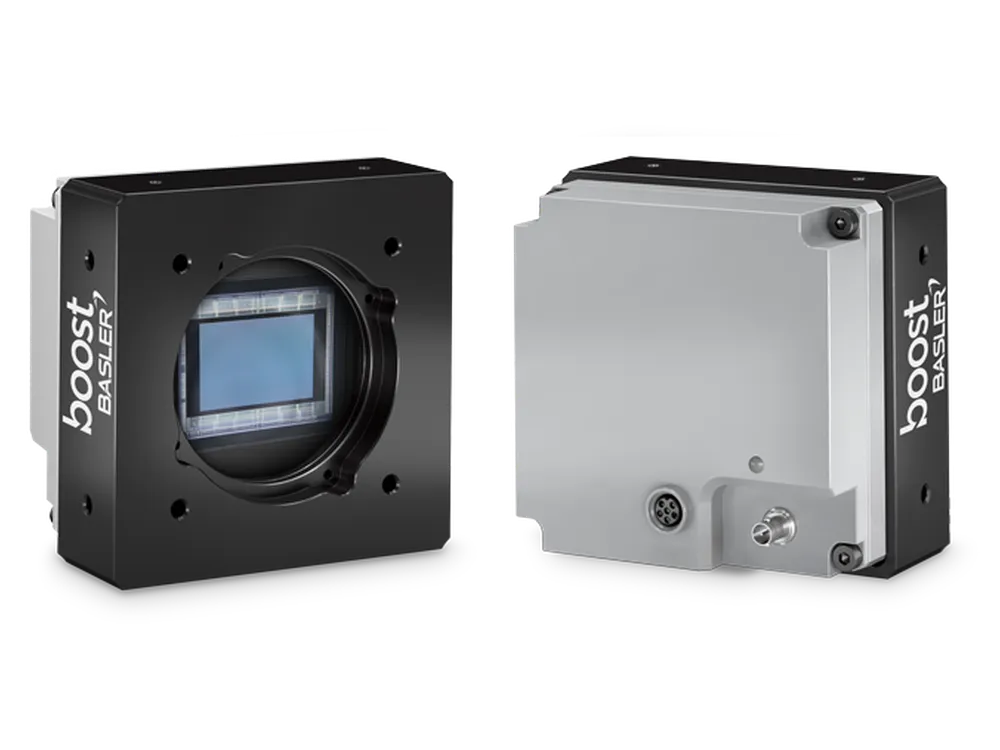

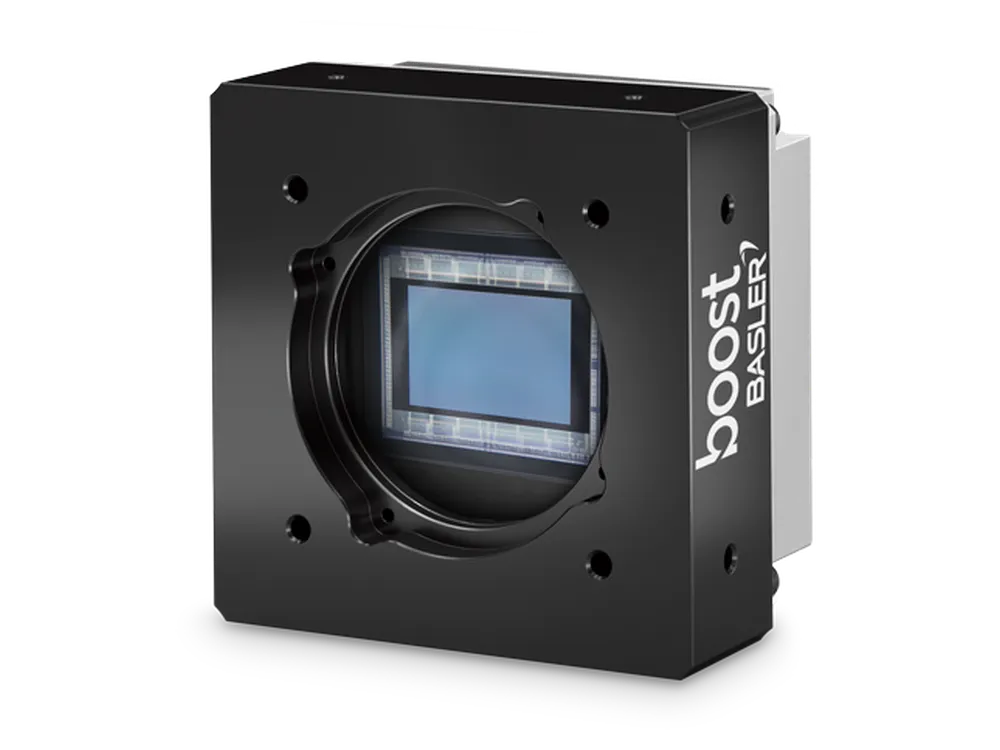

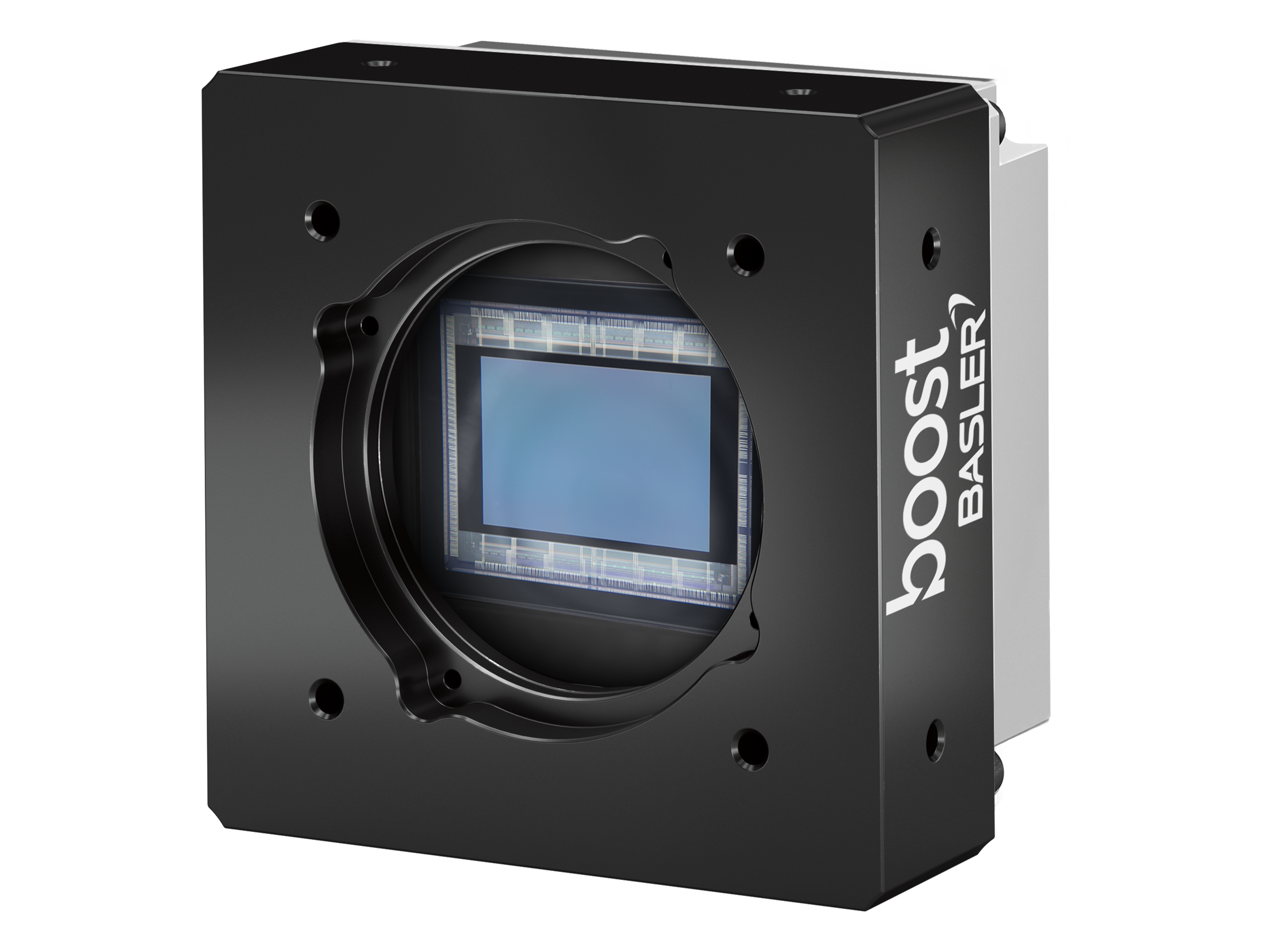

Basler boost R boA6500-36cm

Name: boA6500-36cm
SKU: 108391
Price: 36781.500001 CNY
Availability: PreOrder

Basler CoaXPress 2.0 boA6500-36cm相机，采用onsemi XGS 32000 CMOS芯片，帧速率为36 fps，分辨率为3200万像素。

boost系列可以提供不同的镜头接口（F-mount和M42-mount），这些与相机匹配的接口需要单独购买。

数量

含税价	¥36,781.50
出货时间	Standard可应客户需求提供

感光芯片供应商	onsemi
感光芯片	XGS 32000
快门	Global Shutter
芯片尺寸	APS-C
芯片尺寸	26.28 mm
芯片类型	CMOS
芯片尺寸	21 mm × 15.8 mm
分辨率（长x宽）	6580 px × 4935 px
分辨率 (MP)	32.4 MP
像素尺寸（长x宽）	3.2 μm × 3.2 μm
帧速率	35 fpsCalculate individual frame rate
黑白/彩色	Mono
光谱	Visible

接口	CoaXPress (CXP-12)
图像数据接口	CoaXPress (2.5–12.5 Gbps)
像素位深	10 bits 12 bits
同步	free-run hardware trigger software trigger
曝光控制	hardware trigger programmable via the camera API
数字输入	1
通用I/O	2
电源	PoCXP or 24 VDC
电源要求（典型值）	9.8 W

常规信息

Acquisition Frame Rate
Acquisition Mode
Acquisition Start, Stop, and Abort
Acquisition Status
Exposure Active Trigger
Exposure End Trigger
Exposure Start Trigger
Frame Active Trigger
Frame Burst Active Trigger
Frame Burst End Trigger
Frame Burst Start Trigger
Frame End Trigger
Frame Start Trigger
High Speed Burst Mode
Sensor Readout Time
Triggered Image Acquisition

Defect Pixel Correction
Device Information Parameters
Device Temperature
Sensor Bit Depth
Temperature State
User Sets (Configuration Sets)
User-Defined Values
Vignetting Correction

Auto Function Profile
Binning
Black Level
Center X and Center Y
Counter
Digital Shift
Exposure Auto
Exposure Mode: Timed
Exposure Mode: Trigger Controlled
Exposure Mode: Trigger Width
Exposure Time
Gain
Gain Auto
Gamma Correction
Image ROI (Region of Interest)
Lookup Table (LUT)
Reverse X (Horizontal Mirroring)
Reverse Y (Vertical Mirroring)
Sequencer (ace 2 and boost R)
Short Exposure Time Mode
Stacked ROI
Test Patterns
Timer
