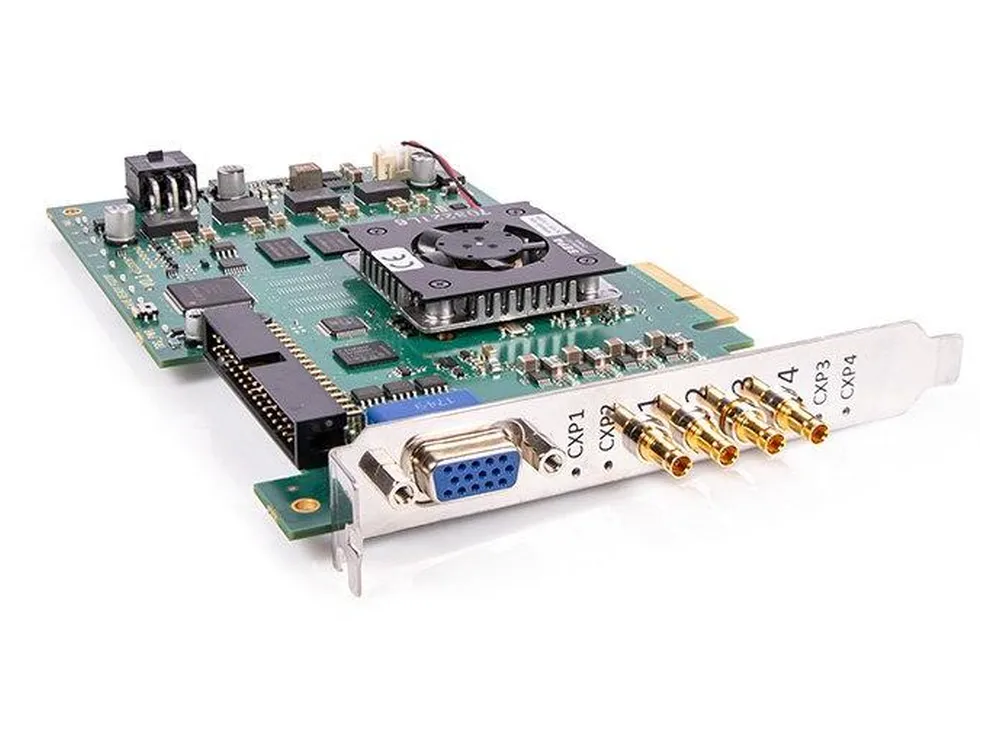

Basler microEnable 5 marathon ACX-QP

Name: microEnable 5 marathon ACX-QP
SKU: 2200000354
Price: 14365.690001 CNY
Availability: PreOrder

microEnable 5 marathon ACX-QP是一款PCIe图像采集设备，最多可连接四台CoaXPress相机，带宽为25 Gbit/s。

microEnable 5 marathon ACX-QP专门用于高速图像采集，最多可连接4台CoaXPress相机，并提供DMA1800 技术，能获得功能强大的高级机器视觉应用。

数量

含税价	¥14,365.69
出货时间	可应客户需求提供

处理器	Xilinx Kintex7 XC7K160T
板载内存	1 GByte DDR3-RAM
I/O模块接口（信号触发和同步）	onboard: 8in/8out (max.), TTL or opto-coupled, Front GPIO: up to 3 differential signals in, up to 4 single-ended signals in (depends on configuration), 2 TTL outputs
通过接口供电（每个端口）	PoCXP (13W/24V per cable, Safe Power)

标准	CoaXPress 1.0/1.1
接口	CoaXPress (CXP-6)
配置	CXP1-6; up to 4 cameras
接头	4 x DIN 1.0/2.3
线材长度	11 - 40 meters
功率输出	13W/24V per cable Power over CXP SafePower
相机支持	area scan camera line scan camera
芯片类型	CFA sensor (Bayer) Grayscale sensor RGB sensor
芯片分辨率	8k (-65k)*65k (area scan sensor, depends on applet),65k (line scan sensors)
位深	8-16-bit (grayscale) 24-48-bit (color)
数据带宽	4 x 6.25 Gbit/s (780 MB/s)
数据带宽（每个端口；总计）	6.25 Gbps; 25 Gbps
端口数量	4
测试环境	Camera Simulator

PC总线接口	PCIe 2.1 x4, DMA1800
PC总线接口性能	up to 1800 MB/s (sustainable)

适用的产品

触发板GPIO接口	Box connector (34-pin)
板载GPIO接口	One 34-pin flat cable connector onboard: 8 input signals and 8 output signals with open-drain optionally as 4 opto-coupled inputs (4,5V - 28V), optional 2 opto-coupled differential inputs (RS422); 4 opto-coupled outputs (4,5V - 28V)
板载前端GPIO接口	2 TTL outputs, up to 20 MHz frequency One 15-pin D-Sub socket: 2 opto-coupled differential inputs (RS422) and 1 opto-coupled differential / single ended input
GPIO同步和控制	Configurable Trigger System supporting several trigger modes (grabber controlled, external trigger, gated, software trigger) and shaft encoder functionality with backward compensation, Multi-Camera-Synchronization
GPIO接口概述	12 in/10 out (max.), TTL or opto-coupled; differential or single-ended signals (configuration dependent)

尺寸	PCIe Standard height, half length card: 167.64 mm length x 111.15 mm height
重量	200 g
功耗/电源	typ. 1.075 A @ 12V (actual values depend on image pre-processing), maximum load: 3.15 A (single supply over 4-pin power connector)
操作温度	50° (0 LFM), 60° (100 LFM) FPGA operating temperature: 0°C to 85°C, * LFM = Linear Feet per Minute, unit for measuring airflow velocity
存储温度	-50 - 80 °C
相对湿度（操作、存储）	5 - 90 % non-condensing (operating), 0 - 95 % (storage)
MTBF	pending

软件驱动程序	Linux 64-Bit Windows 11 / 10 (64-Bit) Windows 11 / 10 (32-Bit)
软件工具	Device Drivers Documentation microDiagnostics (Analysis and service tool) microDisplay (Acquisition control and viewer) SDK
软件API	.net interface Framegrabber SDK
FPGA编程	not programmable
MV-软件兼容性	Cognex Halcon
