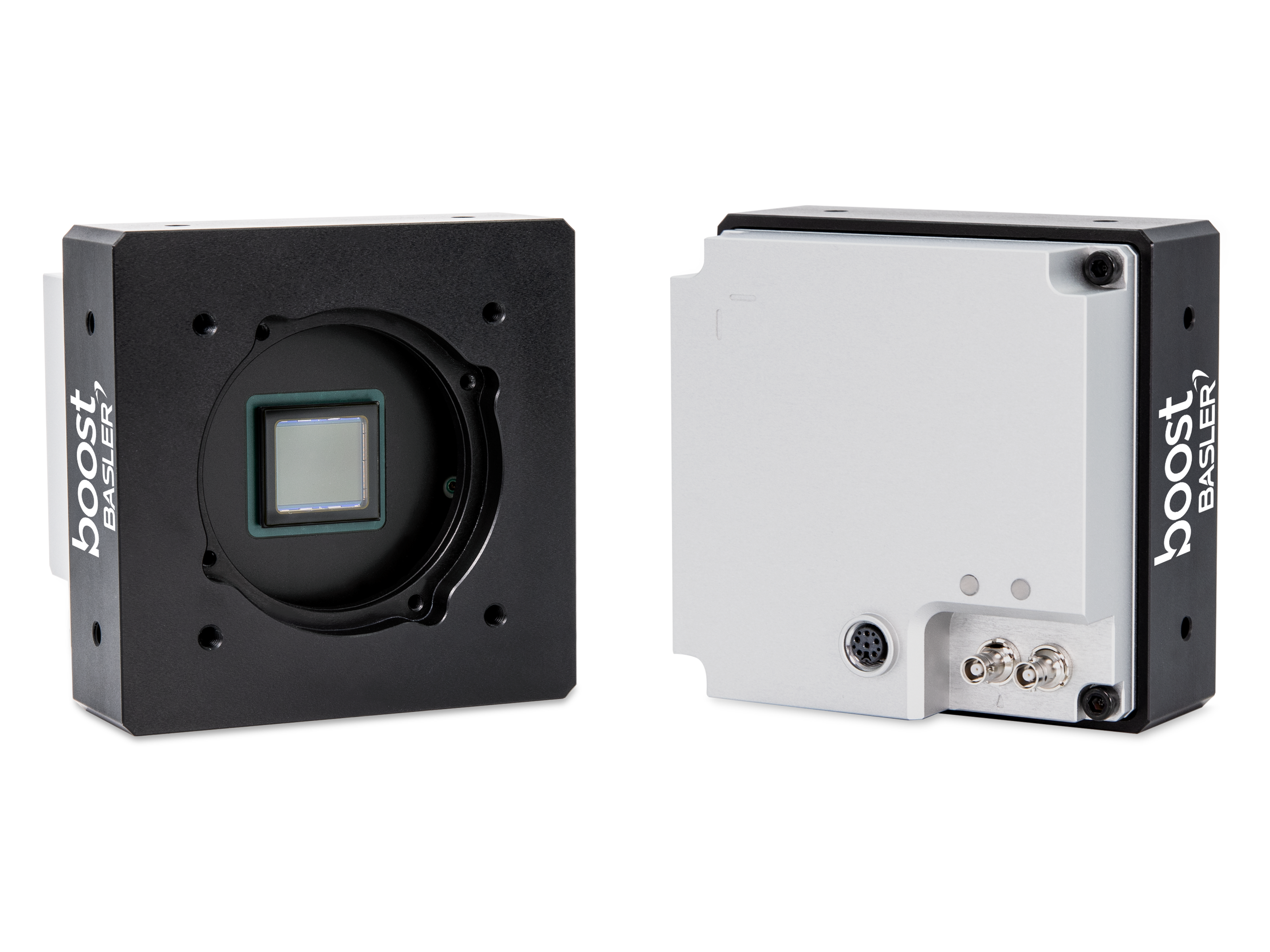

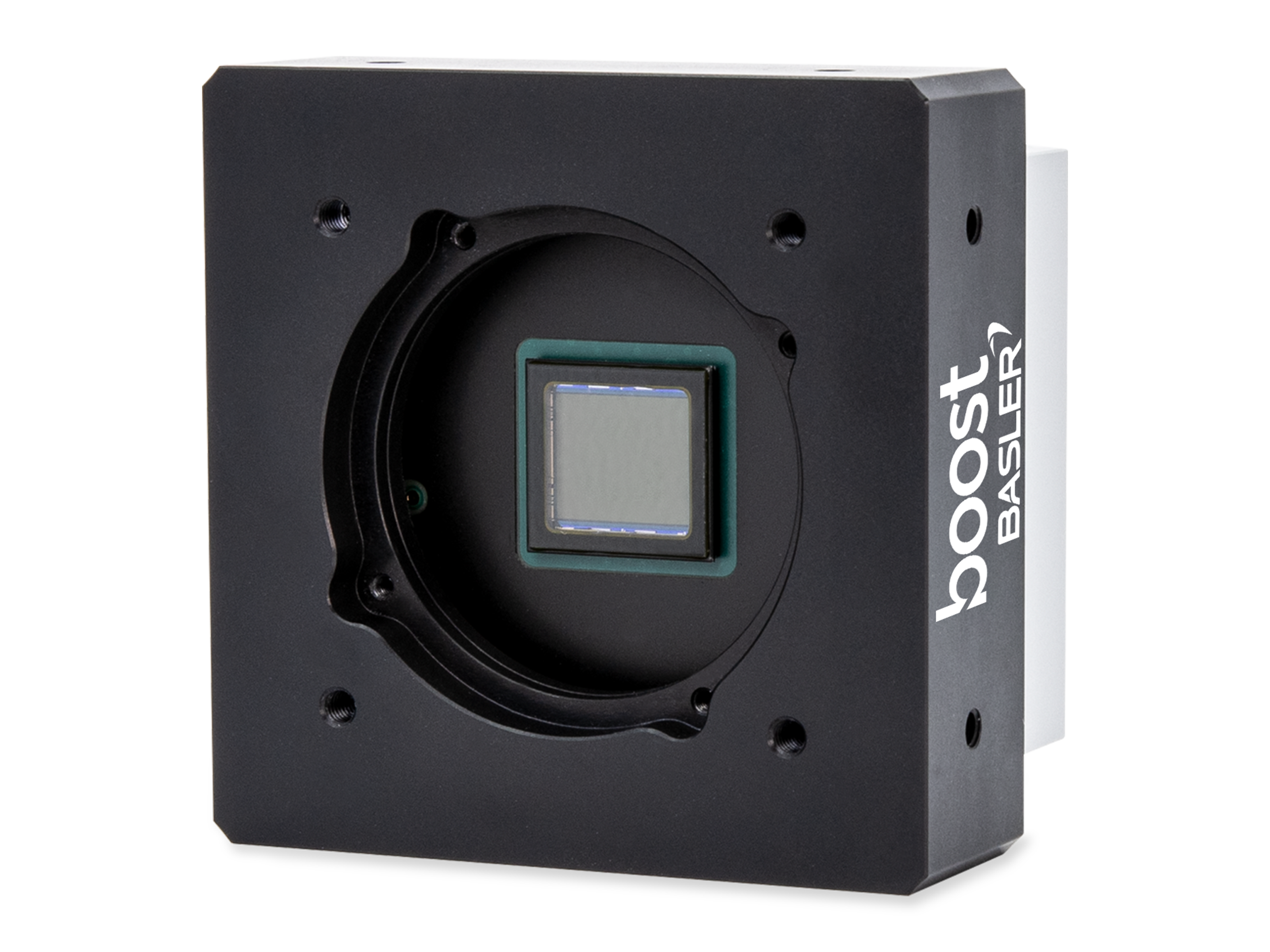

Basler boost R boA4504-100cm

Basler CoaXPress 2.0 boA4504-100cm相机，采用Sony IMX531 CMOS芯片，帧速率为100 fps，分辨率为2000万像素。

含税价	可应客户需求提供
出货时间	Standard可应客户需求提供

感光芯片供应商	Sony
感光芯片	IMX531
快门	Global Shutter
芯片尺寸	1.1"
芯片类型	CMOS
芯片尺寸	12.3 mm × 12.3 mm
分辨率（长x宽）	4504 px × 4504 px
分辨率 (MP)	20 MP
像素尺寸（长x宽）	2.74 μm × 2.74 μm
帧速率	100 fpsCalculate individual frame rate
黑白/彩色	Mono
光谱	Visible

常规信息

Acquisition Frame Rate
Acquisition Mode
Acquisition Start, Stop, and Abort
Acquisition Status
Exposure Active Trigger
Exposure End Trigger
Exposure Start Delay
Exposure Start Trigger
Frame Active Trigger
Frame Burst Active Trigger
Frame Burst End Trigger
Frame Burst Start Trigger
Frame End Trigger
Frame Start Trigger
High Speed Burst Mode
Sensor Readout Time
Triggered Image Acquisition

Defect Pixel Correction
Device Information Parameters
Device Temperature
Sensor Bit Depth
Sensor State
Temperature State
Transfer Bit Depth
User Sets (Configuration Sets)
User-Defined Values
Vignetting Correction

Auto Function Profile
Binning
Black Level
Center X and Center Y
Counter
Digital Shift
Exposure Auto
Exposure Mode: Timed
Exposure Mode: Trigger Controlled
Exposure Mode: Trigger Width
Exposure Time
Gain
Gain Auto
Gamma Correction
Image ROI (Region of Interest)
Lookup Table (LUT)
Multiple ROI
Reverse X (Horizontal Mirroring)
Reverse Y (Vertical Mirroring)
Sequencer (ace 2 and boost R)
Test Patterns
Timer
Ultra Short Exposure Time Mode
