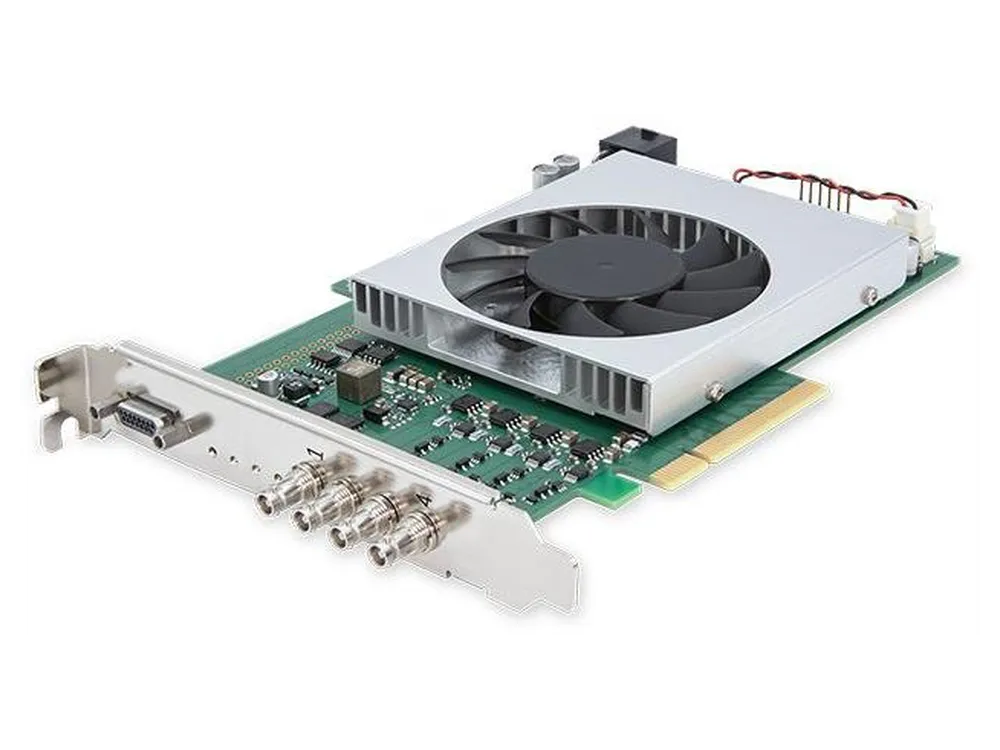

CXP-12 Interface Card 4C

Name: CXP-12 Interface Card 4C
Brand: Basler
SKU: 2200000702
Availability: PreOrder

Basler CXP-12接口卡4C能提供四通道Micro-BNC (HD BNC)连接，最高带宽可达12.5 Gbps。

Basler CXP-12接口卡4C可为您的Basler boost相机实现优化集成。通过pylon相机软件套装可以轻松控制相机和接口卡。

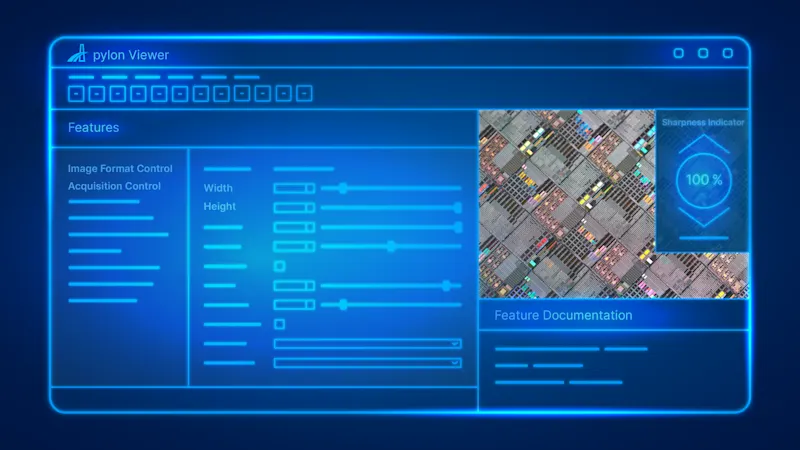

用于图像采集的pylon软件

pylon能够为许多相机接口提供经过认证的驱动程序，并配备简单易用的编程接口，以及实用的相机设置工具。

处理器	Xilinx Ultrascale+ KU3P
板载内存	1.5 GByte DDR4-RAM
I/O模块接口（信号触发和同步）	Front GPIO: up to 3 differential signals in, up to 4 single-ended signals in (depends on configuration), 2 TTL outputs
通过接口供电（每个端口）	PoCXP (17W/24V per connector)
Acquisition Card Features	Flat Field Correction Digital Binning PGI Color Reconstruction

标准	CoaXPress 2.0/2.1
接口	CoaXPress (CXP-12)
配置	CXP-12; up to 4 cameras
接头	4 x Micro-BNC/HD-BNC
线材长度	11 - 40 meters
功率输出	17W/24VDC regulated power per CXP connector, device detection and short circuit protection
相机支持	area scan camera line scan camera
芯片类型	CFA sensor (Bayer) Grayscale sensor RGB sensor
芯片分辨率	32k*64k (area scan sensor), 16k (line scan sensor)
位深	8-16-bit (grayscale) 24-48-bit (color)
数据带宽	4 x 12.5 Gbit/s (1,560 MB/s)
数据带宽（每个端口；总计）	12.5 Gbps; 50 Gbps
端口数量	4

PC总线接口	PCIe 3.0 x8
PC总线接口性能	7876 MB/s (theoretical), 6520 MB/s (typical/max.)

板载前端GPIO接口	3 differential input signals or 2 differential and 1 single-ended signal or 4 single-ended signals; 2 TTL output signals; configurable by software GPIOTool; max. voltage of the input signals between 4,5V and 25V
GPIO接口概述	4 in/2 out (max.), TTL or opto-coupled; differential or single-ended signals (configuration dependent)

尺寸	PCIe Standard height, half length card: 167.64 mm length x 111.15 mm height
重量	267 g
功耗/电源	Typ. 13,4W@12V, excluding camera and I/O power output
操作温度	0 - 50 °C
存储温度	-50 - 80 °C
相对湿度（操作、存储）	5 - 90 % non-condensing (operating), 0 - 95 % (storage)
MTBF	48.475 h

软件驱动程序	Linux 64-Bit Windows 11 / 10 (64-Bit)
软件工具	Device Drivers Documentation pylon Software Suite
软件API	Framegrabber SDK GenTL pylon SDKs
MV-软件兼容性	GenTL-based MV-Software pylon Software Suite
