microEnable 5 marathon VCX-QP

Name: microEnable 5 marathon VCX-QP
Brand: Basler
SKU: 2200000357
Price: 26035.98 CNY
Availability: PreOrder

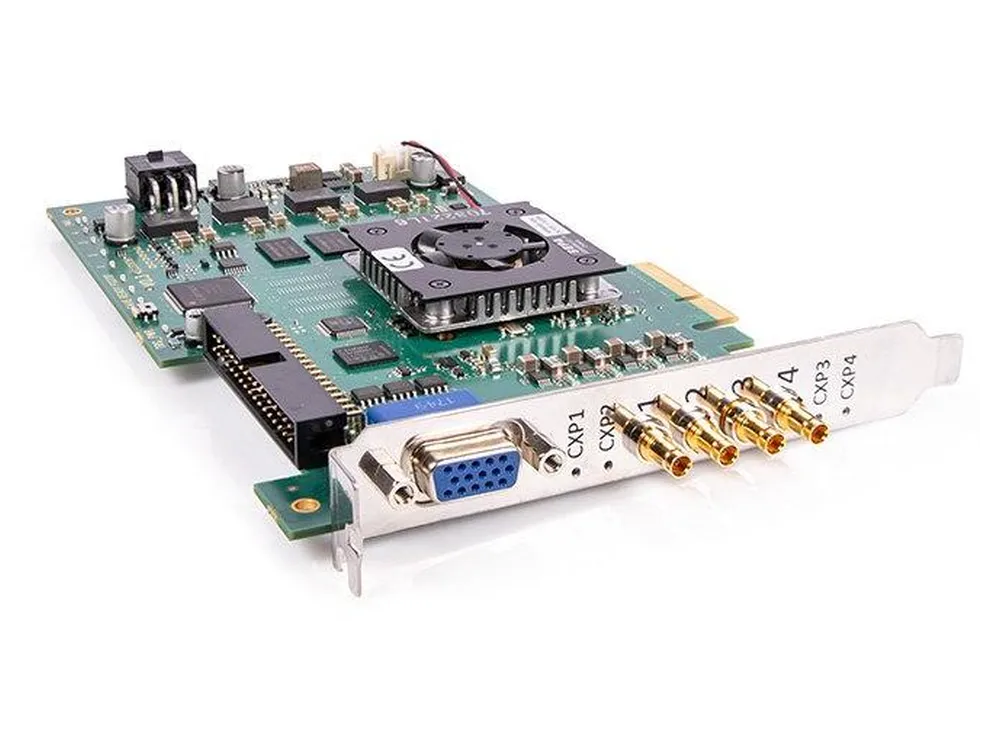

microEnable 5 marathon VCX-QP是一款PCIe图像处理设备，最多可连接四个CoaXPress相机，带宽为25 Gbit/s。

microEnable 5 marathon VCX-QP专门用于高速图像处理，最多可连接4台CoaXPress相机，并提供DMA1800 技术，能获得功能强大的高级定制机器视觉应用。

Basler 产品提供 3 年保修全球范围内的个人专家支持安全、加密的数据传输

处理器	Xilinx Kintex7 XC7K160T
板载内存	2 GByte DDR3-RAM
I/O模块接口（信号触发和同步）	Front GPIO: up to 3 differential signals in, up to 4 single-ended signals in (depends on configuration), 2 TTL outputs
通过接口供电（每个端口）	PoCXP (13W/24V per connector)

标准	CoaXPress 1.0/1.1
接口	CoaXPress (CXP-6)
配置	CXP1-6; up to 4 cameras
接头	4 x DIN 1.0/2.3
线材长度	11 - 40 meters
功率输出	17W/24VDC regulated power per CXP connector, device detection and short circuit protection Power over CXP
相机支持	area scan camera line scan camera
芯片类型	CFA sensor (Bayer) Grayscale sensor RGB sensor
芯片分辨率	16k (-32k)*65k (area scan sensor, depends on applet),16k - 32k (line scan sensor, depends on applet)
位深	8-16-bit (grayscale) 24-48-bit (color)
数据带宽	4 x 6.25 Gbit/s (780 MB/s)
数据带宽（每个端口；总计）	6.25 Gbps; 25 Gbps
端口数量	4
测试环境	Camera Simulator

PC总线接口	PCIe 2.1 x4, DMA1800
PC总线接口性能	up to 1800 MB/s (sustainable)

触发板GPIO接口	Box connector (34-pin)
板载GPIO接口	One 34-pin flat cable connector onboard: 8 input signals and 8 output signals with open-drain optionally as 4 opto-coupled inputs (4,5V - 28V), optional 2 opto-coupled differential inputs (RS422); 4 opto-coupled outputs (4,5V - 28V)
板载前端GPIO接口	2 TTL outputs, up to 20 MHz frequency One 15-pin D-Sub socket: 2 opto-coupled differential inputs (RS422) and 1 opto-coupled differential / single ended input
GPIO同步和控制	Configurable Trigger System supporting several trigger modes (grabber controlled, external trigger, gated, software trigger) and shaft encoder functionality with backward compensation, Multi-Camera-Synchronization
GPIO接口概述	4 in/2 out (max.), TTL or opto-coupled; differential or single-ended signals (configuration dependent) 8 in/8 out (max.), TTL or opto-coupled; differential or single-ended signals (configuration dependent)

适用的产品

尺寸	PCIe Standard height, half length card: 167.64 mm length x 111.15 mm height
重量	168 g
功耗/电源	typ. 1.175 A @ 12V (actual values depend on image pre-processing), maximum load: 3.35 A (single supply over 4-pin power connector)
操作温度	50° (0 LFM), 60° (100 LFM) FPGA operating temperature: 0°C to 85°C, * LFM = Linear Feet per Minute, unit for measuring airflow velocity
存储温度	-50 - 80 °C
相对湿度（操作、存储）	5 - 90 % non-condensing (operating), 0 - 95 % (storage)
MTBF	pending

软件驱动程序	Linux 64-Bit Windows 11 / 10 (64-Bit) Windows 11 / 10 (32-Bit)
软件工具	Device Drivers Documentation microDiagnostics (Analysis and service tool) microDisplay (Acquisition control and viewer) SDK
软件API	.net interface Framegrabber SDK
FPGA编程	VisualApplets
MV-软件兼容性	Halcon VisionPro

LUT	通过创建自定义查找表(LUT)，您可以使用自己定义的值来替换图像中的像素值。
Offset/Gain/Gamma Correction	更改图像亮度值，实现高效图像处理并优化显示器的显示效果。
White Balancing	将图像的颜色值与系统环境相匹配，以实现更逼真的呈现效果。

ROI	将图像流限制在相关芯片区域，以确保实现高效的图像处理。
VisualApplets Compliance	使用VisualApplet的预处理功能可降低应用负载、减少图像数据、提高成像质量或加快图像处理速度。该功能是可编程图像采集卡具备的一项特性。
